| Lugar de origen: | Zibo, China |
|---|---|
| Nombre de la marca: | Laurel |
| Certificación: | ISO9001 |
| Número de modelo: | Laurel-02-02 |
| Cantidad de orden mínima: | 10 PC |
| Precio: | 2 USD/ pcs |
| Detalles de empaquetado: | Caja o plataforma del cartón |
| Tiempo de entrega: | 10~15 días |
| Condiciones de pago: | T/T; L/C, D/A, D/P, Western Union, MoneyGram |
| Capacidad de la fuente: | 500 toneladas/mes |
| Nombre del producto: | Tableros de fibra cerámica | Tipo de la pieza:: | Consejo |
|---|---|---|---|
| Características:: | Resistencia al calor, resistencia a la corrosión, peso ligero | Utilización: | revestimientos, hornos y hornos, etc. |
| El material:: | fibra de cerámica | Rango de temperatura: | 1260 /1430°C |
| Aplicación: | Aislamiento térmico | tamaño: | Se puede personalizar, 1200*1000*25mm/1200*1000*50mm |
| Densidad: | 200 kg/m3 | Forma de las piezas: | Pintura |
| El color: | Blanco | El tipo: | Materiales de aislamiento de calor |
| Composición química: | Se trata de una mezcla de agua y agua. | Densidad (kg/m3): | 128,96 |
| Temperatura de trabajo: | 1000 a 1350 | ||
| Resaltar: | El panel de fibras de cerámica de alta densidad del aislamiento,panel de fibras de cerámica incombustible a prueba de calor,vacío formó el material refractario de la fibra de cerámica |
||

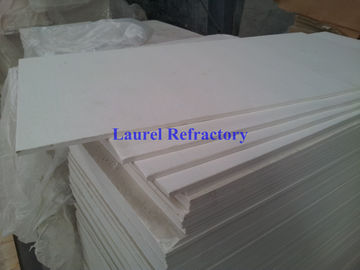

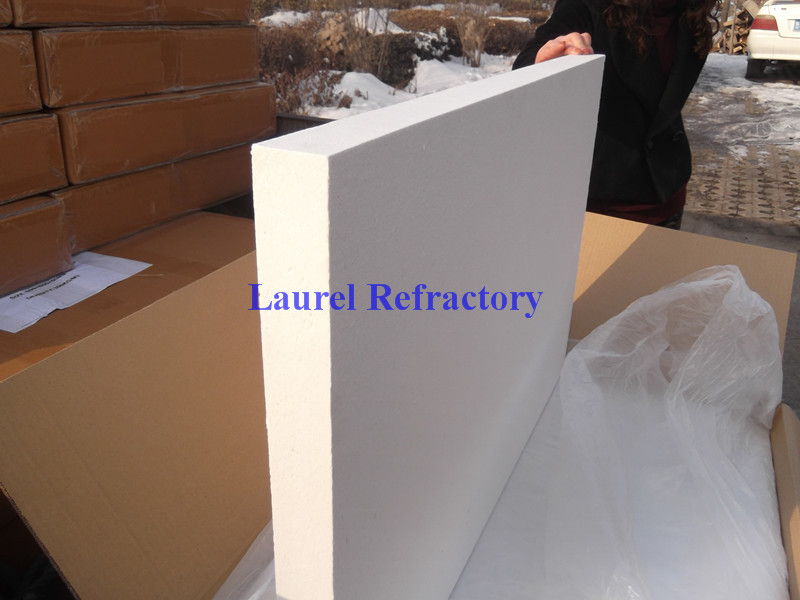

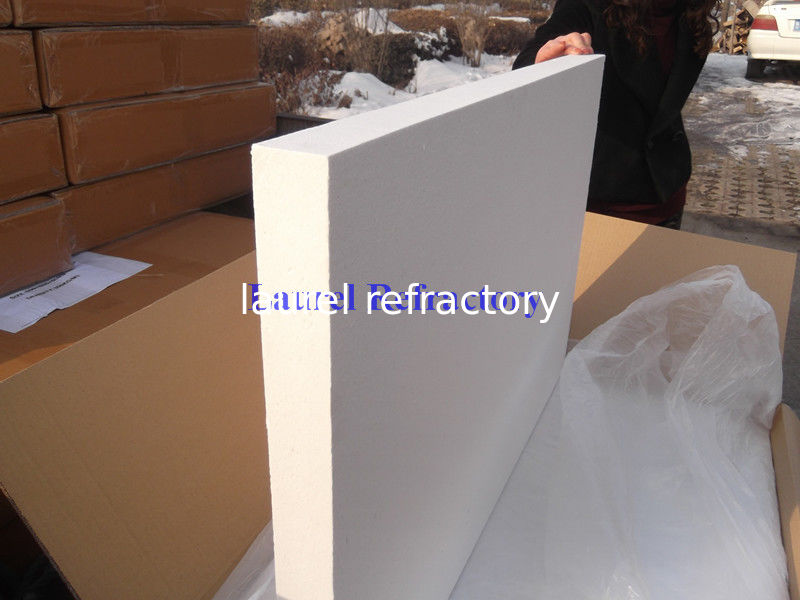

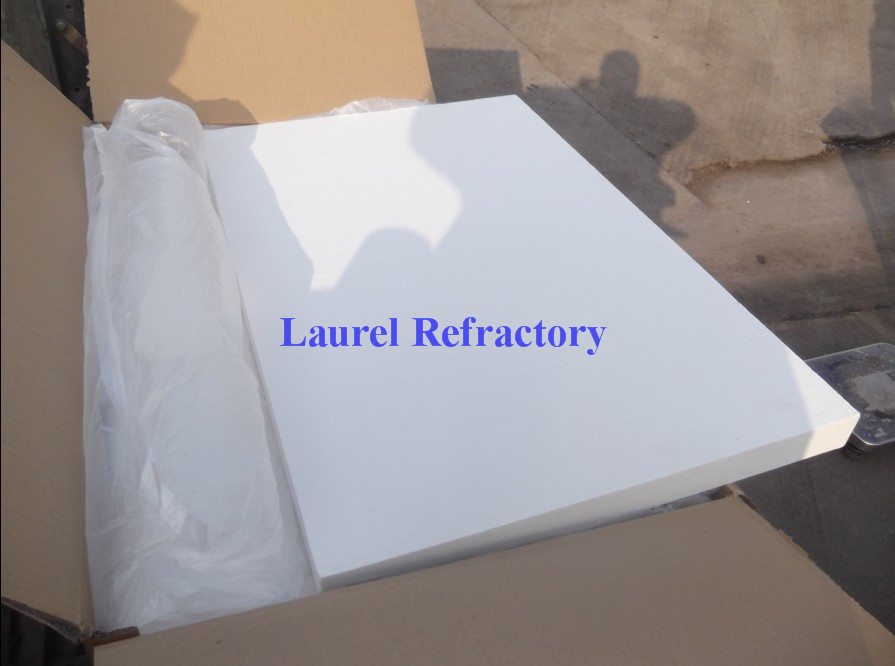

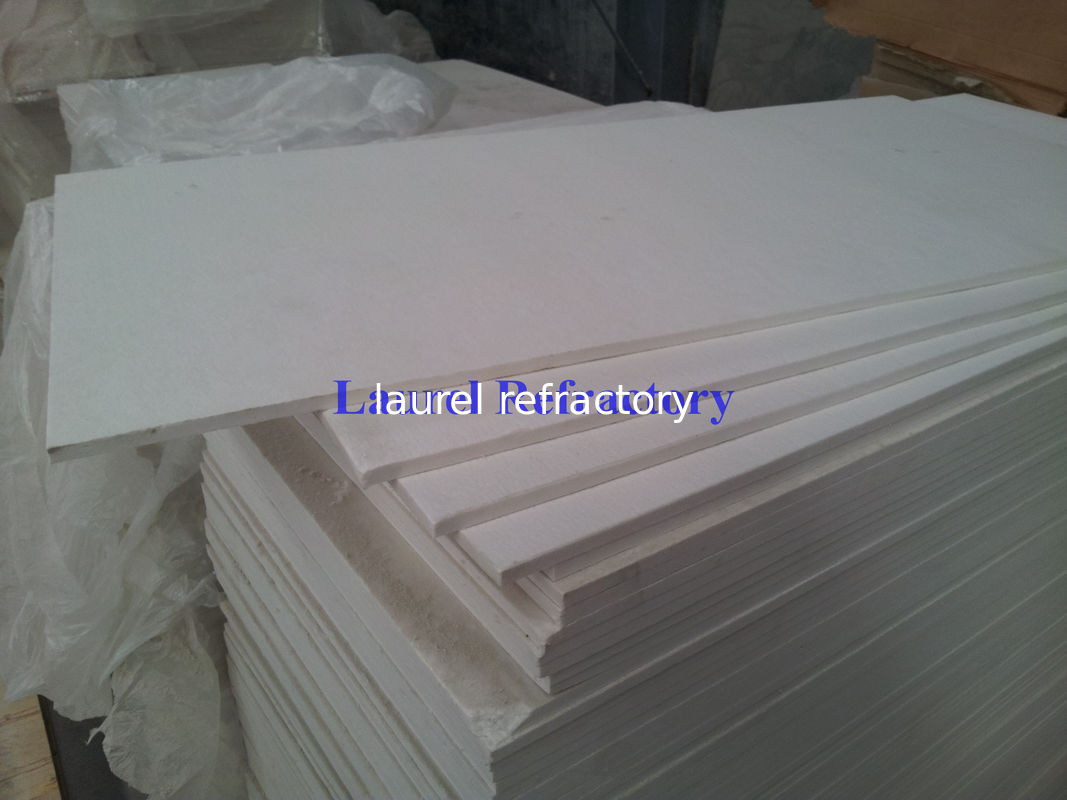

High density heat resistant ceramic fiber fireproof board insulation materials
We are a specialized manufacturer of refractory and heat insulation with more than 10 years’ history. Now it has 20,000 sqm floor area and can produce 20,000 tons of more than 10 kinds of medium and top grade refractory and heat insulation material annually. Both Research & Development Center for technology and Testing center for chemical and physical properties are established.
Laurel ceramic fiber board is a lightweight refractory material processed with alumina-silica fibers for applications at temperatures up to 1430℃(2600℉)
Ceramic fiber board is a vacuum formed product that resists higher gas velocities than ceramic fiber blanket,it is ideal for furnace, boiler duct and stack lining due to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance.
| Item | Common | Standard | H Pure | H Alumina | Zirconium |
| AL2O3(%) | 44 | 46 | 47-50 | 52-55 | 39-40 |
| Fe2O3(%) | 1.2 | 1.0 | 0.2 | 0.2 | 0.2 |
| ZrO2(%) | － | － | － | － | 15-19 |
| Classification Temperature (℃) | 1100 | 1260 | 1260 | 1360 | 1430 |
| Working Temperature (℃) | 1000 | 1050 | 1100 | 1200 | 1350 |
| Density (kg/m3) | 260/320 | 260/320 | 260/320 | 260/320 | 260/320 |
| Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) | -4 (1000°C) |
-3 (1000°C) |
-3 (1100°C) |
-3 (1250°C) |
-3 (1350°C) |
| Tensile strength (Mpa) density128kg/m3) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 |
The most advanced full auto equipment and strictly QC control system could guarantee quality to meet the requirements of the local and international markets ,and we are famouse for the safe package and prompt delivery.
Welcome to contact us for more information.
